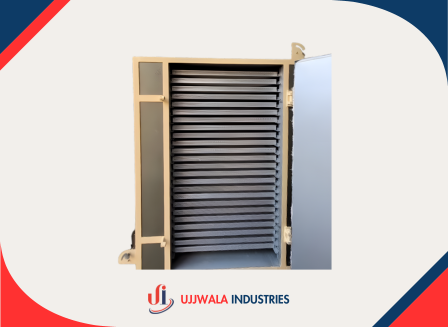

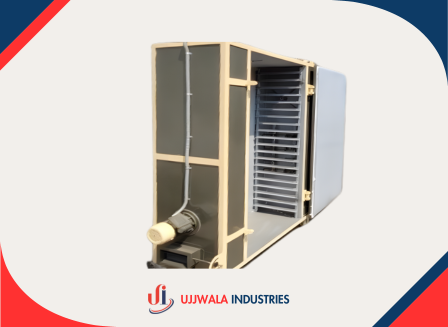

Electric Tray Dryer

Use Of Product / Advantages

Uniform Drying: The controlled airflow ensures uniform drying across all trays.

Batch Processing: Ideal for small batches and varied products.

Gentle Drying: Low drying temperatures prevent damage to heat-sensitive materials.

Easy Monitoring: Transparent chamber allows visual inspection during drying.

Applications

Tray Dryers are ideally suitable for drying chilies, spices, potato chips, onions, fish, garlic, grapes, cashew nuts, pistachio nuts , makhana, areca nut , coconut, roots , walnuts ,Fig , Ginger, Spice, etc. It is also for used for drying pharmaceuticals, chemicals, powders, granules, plastic granules etc. Heating is either by electric or steam or both combined. Various models are listed in this leaflet to suit customer requirements. Custom built models can be quoted on request.

Features

Chamber: The main housing where the trays are stacked and drying occurs.

Trays: Shelves where materials are placed for drying.

Heating System: Generates hot air for the drying process.

Air Circulation System: Ensures even distribution of hot air within the chamber.

Exhaust System: Expels moisture-laden air from the chamber.

Technical Specifications

Loading capacity	10-12 Trays	20-24 Trays	25 Trays	48-50 Trays	96-100 Trays	192-200 Trays
No of Doors	One	One	One	One	Two	Two
No of Blowers	Two	Two	Two	Two	Two	Four
No of motors / H.P.3 Phase 415 Volts .	2/ 0.5 H.P.single phase 240 volt 1400 rpm	2 / 0.5 H.P.single phase 240 volts 240 rpm	2 / 0.5 H.P.single phase 240 volts 240 rpm	2/1 H.P.Three phase 415 volts 1400 rpm	2/1 H.P.Three phase 415 volts 1400 rpm	2 / 2 H.P.eachThree phase 415 volts 1400 rpm
Electrical Heating Load for 100 ° C / 200 ° C / 300 ° C	3kw	6kw	8kw	12kw	24kw	36kw
Insulation in mm100 ° C / 200 ° C / 300 ° C	50	50	50	75	75	75
No of Trolleys	Rack System	Rack System	Rack System	One	Two	Four
Tray Size	32x16x1.5 Inch	32x16x1.5 Inch	32x16x1.5 Inch	32x16x1.5 Inch	32x16x1.5 Inch	32x16x1.5 Inch
Trolley Dimension	Fixed Racks	Fixed Racks	Fixed Racks	Movable Trolley	Movable Trolley	Movable Trolley
